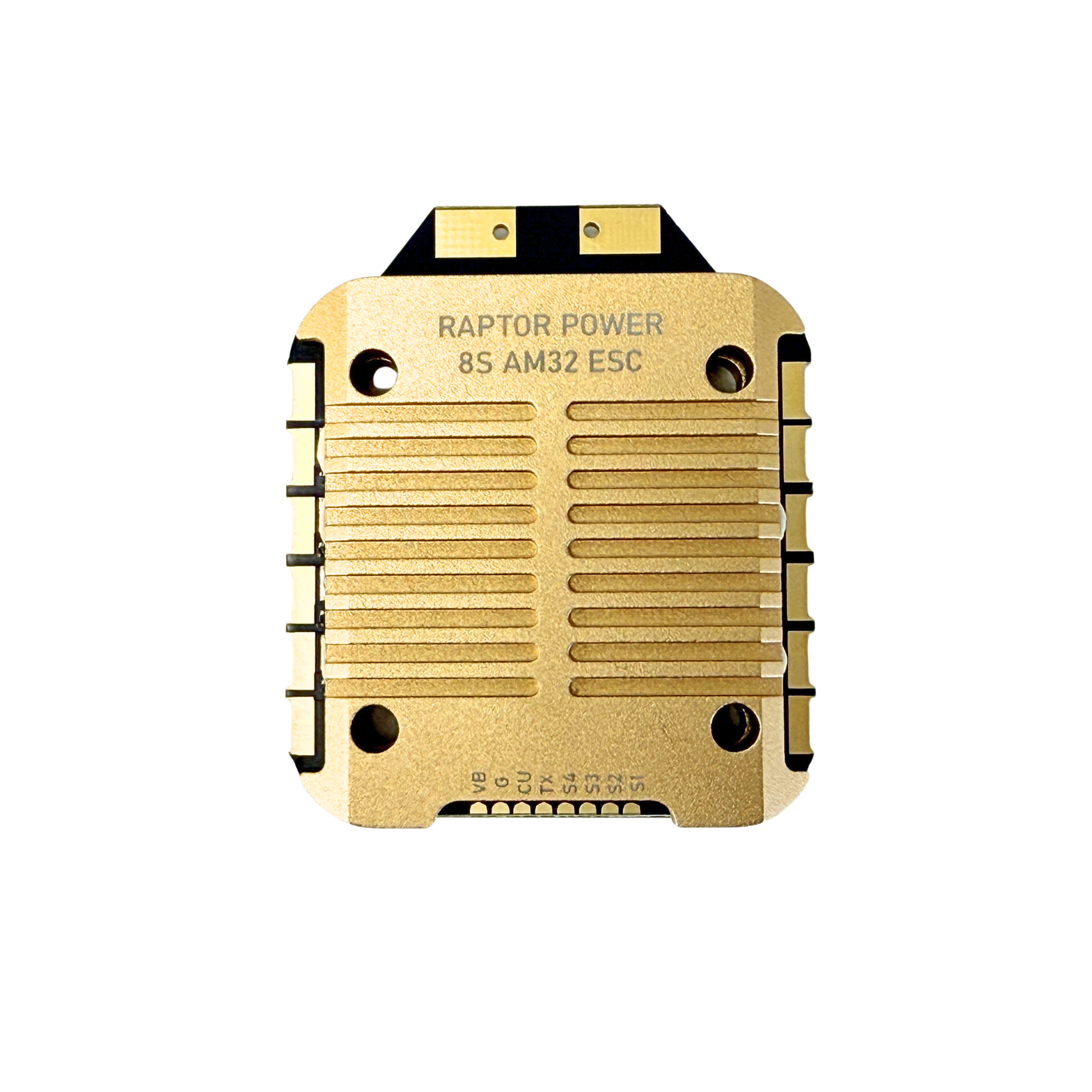

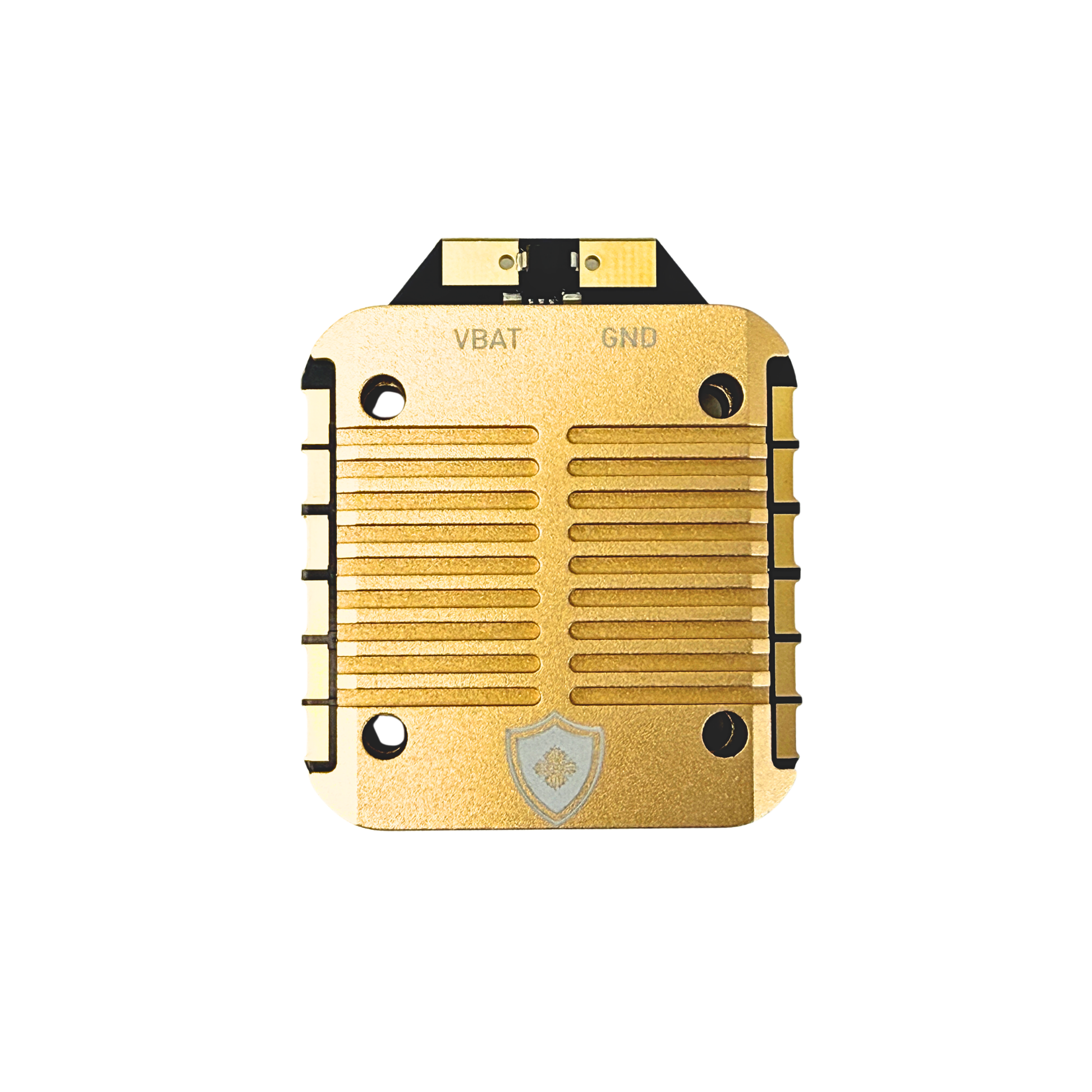

Raptor Power 8S 4in1 ESC

Raptor Power 4-in-1 ESC is a compact, high-performance electronic speed controller engineered for interception UAVs and advanced autonomous platforms. It integrates high current power delivery, fast-response motor control, and advanced protection systems into a single lightweight unit, reducing wiring complexity and improving overall reliability.Built on an ARM Cortex-M4 architecture and running AM32 firmware, it supports multiple control protocols and hybrid FOC + PWM algorithms for smooth, precise, and efficient motor operation. Designed for demanding flight conditions, it delivers stable performance under high load and dynamic manoeuvres.

With integrated aluminium cooling, the ESC ensures effective thermal management during continuous high-current operation. Protection features including overcurrent, over- temperature, voltage spike, and short circuit protection provide mission-critical reliability in harsh environments.

MCU : ARM Cortex-M4 @ 120MHz

Continuous Current : 85A Per Ch.

Peak Current : 100A Per Ch.

Input Voltage : 2S-8S LiPo

PWM Frequency : 8-48kHz

Protocols : DShot150/300/600/Multishot/Oneshot/PWM

Algorithm : Hybrid FOC + PWM control

Firmware : AM32

Protections : Overcurrent, Over Temperature, Voltage Spike,Short-Circuit

Dimensions : 54×45×11 mm
