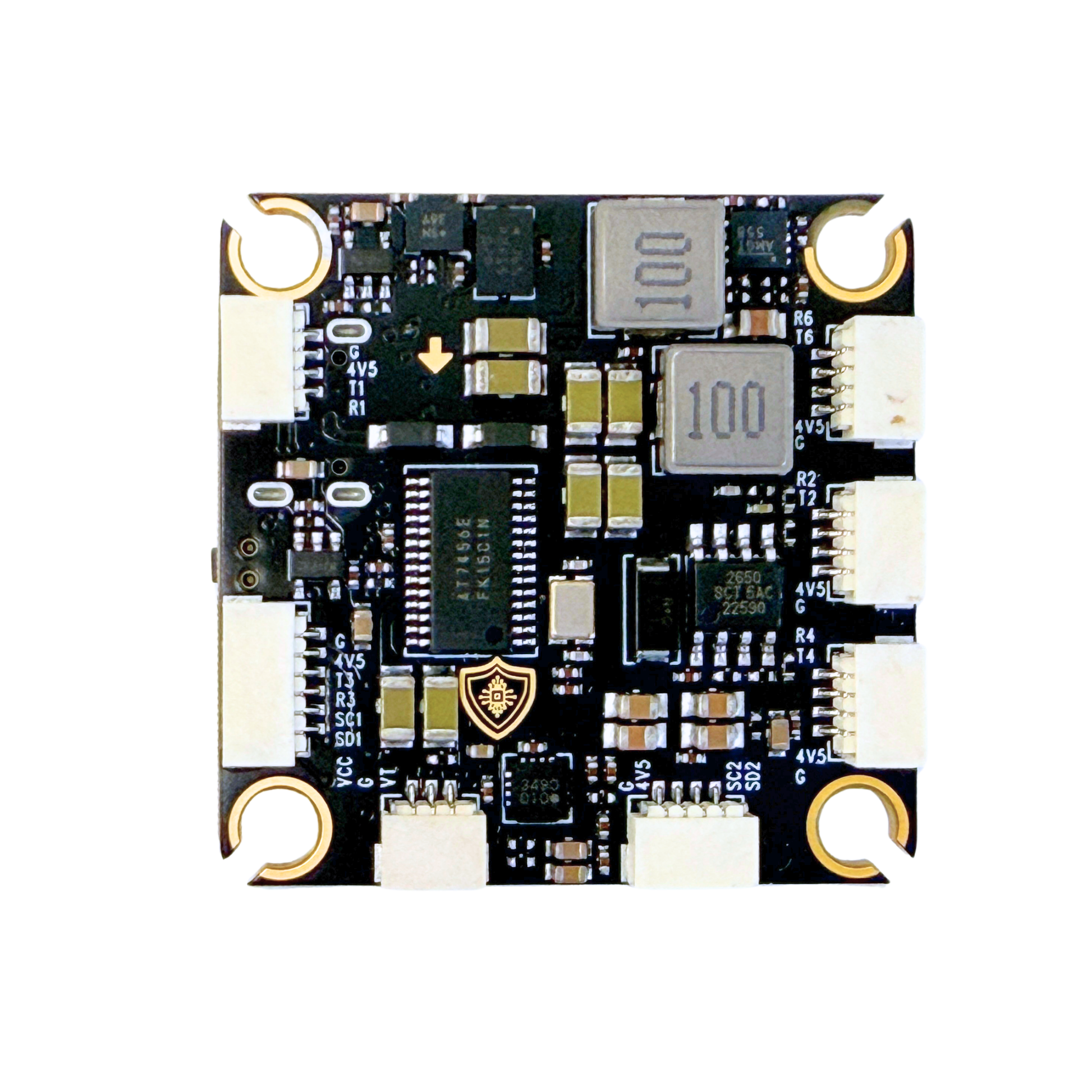

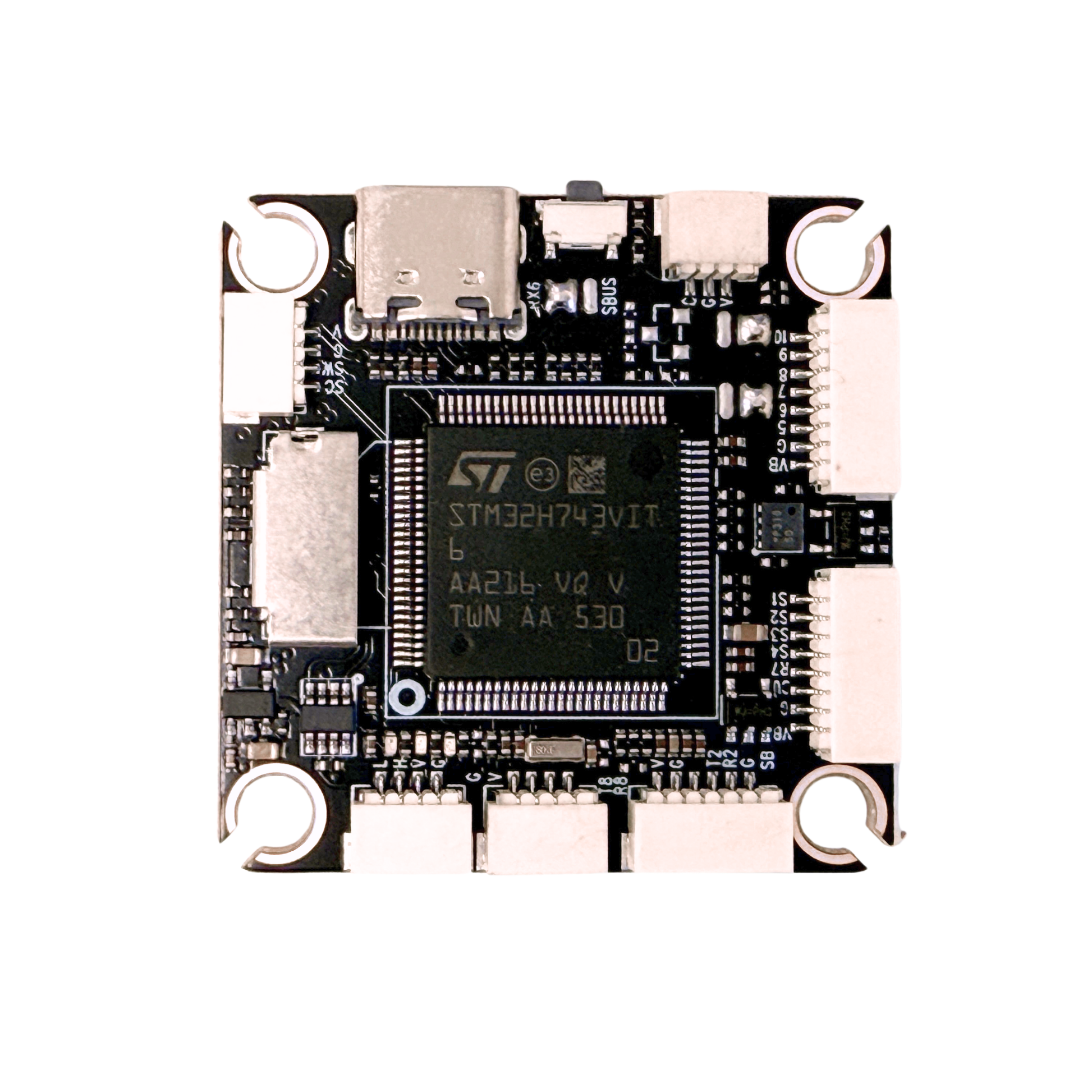

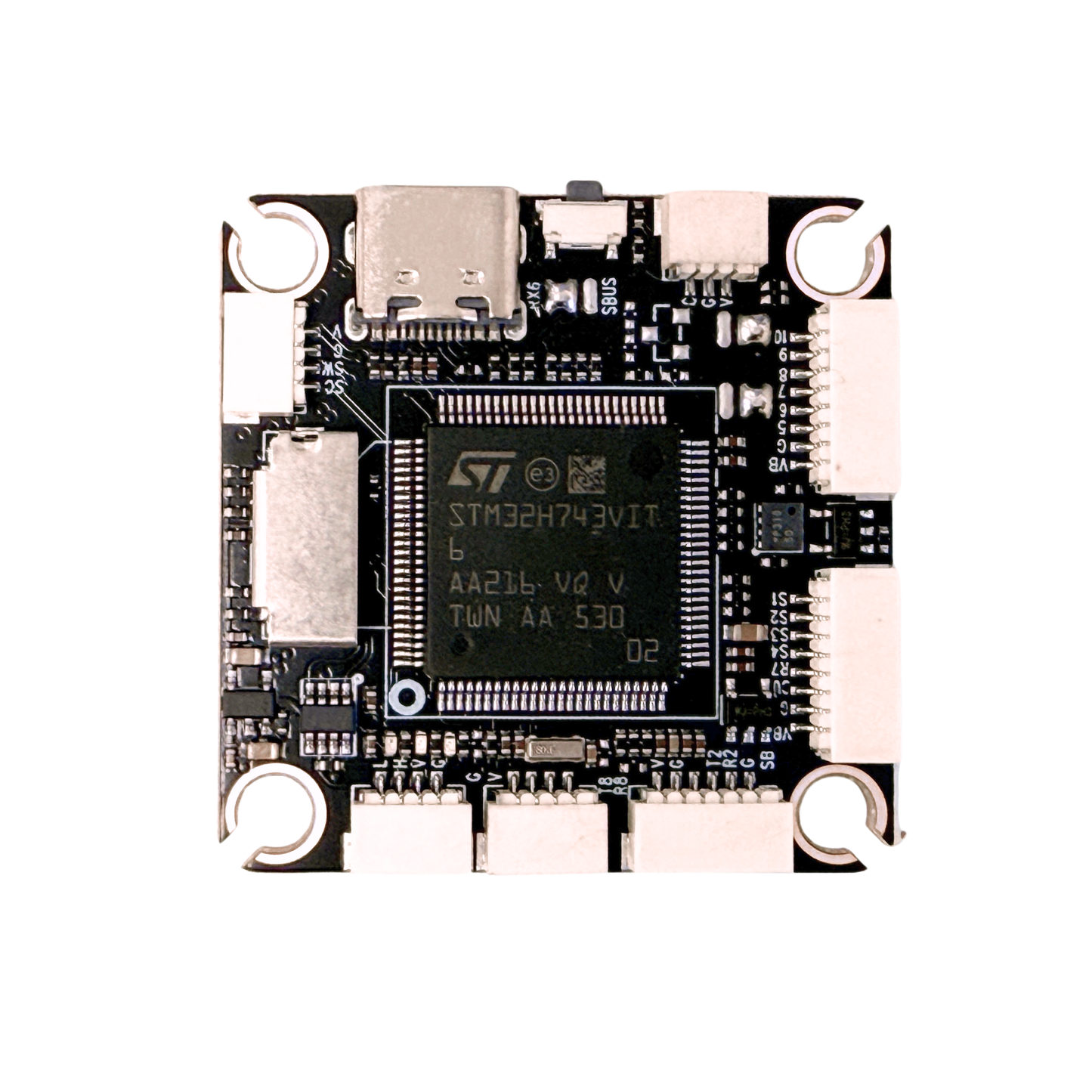

Raptor Pilot FC

H743 Flight Controller is a high-performance control unit designed for FPV drones and autonomous UAV systems. Powered by the STM32H743 (Cortex-M7 @ 480MHz), it provides low-latency processing and stable flight control under demanding conditions. The system integrates dual IMUs (BMI270 + BMI088), DPS310 barometer, and IST8310 magnetometer to ensure reliable state estimation and redundancy. It supports high-rate control loops, multiple communication interfaces (UART, CAN, I2C), and onboard blackbox logging for precise tuning and diagnostics.

Designed for 2S–8S platforms with isolated BEC outputs, the controller delivers stable operation in high-power environments. Features such as CAN-based ESC telemetry, onboard

OSD, and AES-256 encrypted communication enable secure and scalable integration into advanced UAV systems.

Processor : STM32H743 (Cortex-M7 @ 480MHz, Dual FPU)

Memory : 1MB SRAM + 2MB Flash

IMU : BMI270 + BMI088

Magnetometer : IST8310

Barometer : DPS310

Connectivity : 7*UART / 10*PWM / 1*CAN / 1*I2C

Blackbox Storage : TF card

Input Voltage : 2S-8S LiPo

BEC Outputs : 9V@5A + 5V@5A (Isolated)

Dimensions : 37×37mm (30.5×30.5mm mounting)

Board Weight : 11g
